RATTMMOTOR Servo Linear Actuator ZBX80 Plus CNC Linear Stage Motion Platform+400W 220V Servo Motor Without Brake+Driver, XYZ Axis Linear Slide Table Rail Guide (400mm)
4.2 (112 items)
Limited Time SaleUS$148.20 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211204681 | Release Date | 2026/04/04 | List Price | US$98.80 | Model Number | 211204681 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ✅【ZBX80 PLUS -400mm load capacity】Material: Aluminum Alloy; Effective Stroke: 400mm/15.75 inch; Horizontally loadable: 80KG / 176.37 lb; Vertical carrying: 20KG / 44.09 Ib; Width: 80mm/3.15 inch; Motor running Speed: 80mm/s.
- ✅【400W 220V Servo motor 】Power: 400W; Rated voltage: 220V; Rated torque: 1.27N.m; Rated speed: 3000RPM; Rated top current: 2.5A; Encoder: 17-bit magnetic coding; Output line: 2m, send pulse line one metre.

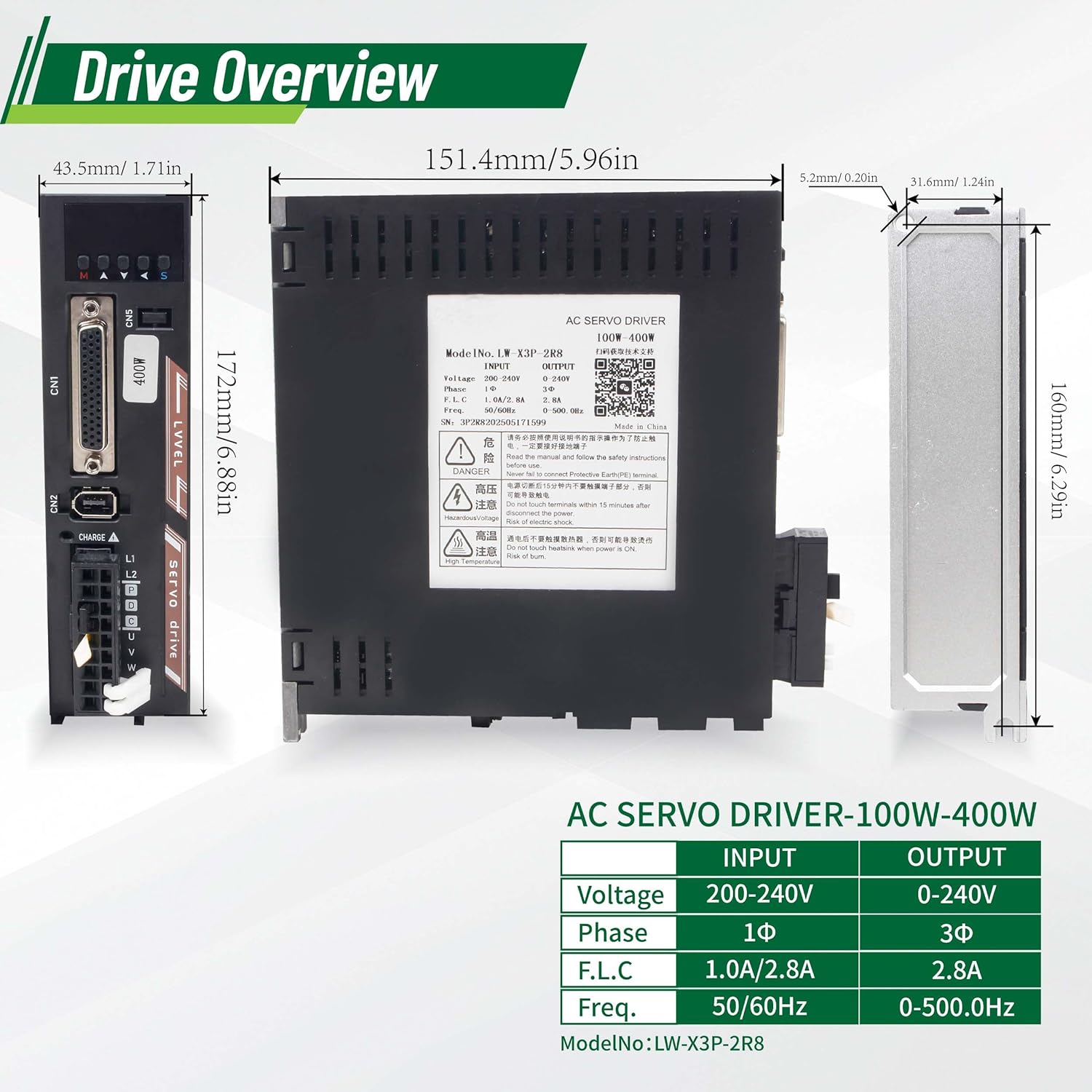

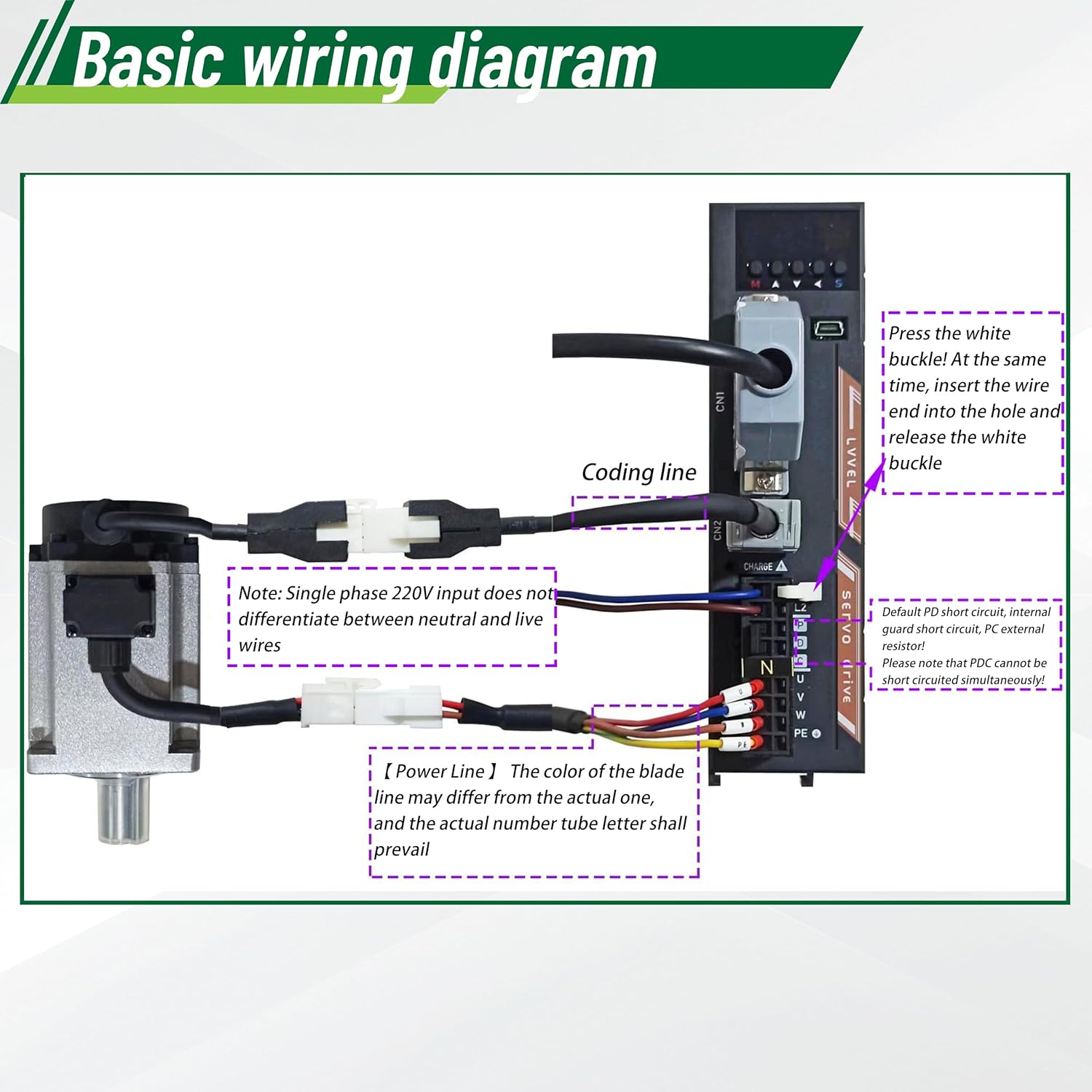

- ✅【AC servo motor driver 】With 485 communication, speed mode, position mode, torque mode; drive comes with LED digital display panel, which can monitor the real-time running status or abnormalities of the drive; support single pulse, differential pulse, speed + direction pulse and other pulse control methods, pulse input voltage range 5-24V, high compatibility, convenient to use with PLC touch screen motion controller and other products.
- ✅【12mm linear guide + slider with 1605 ball screw】With automatic centring, high positioning accuracy of linear guide; made of high quality bearing steel, sturdy and durable, with good toughness and high hardness. The screw and support seat are forged from high quality carbon steel and matched with aluminium alloy bearing seat with high precision and hardness. Ball screw slides smoothly with low friction resistance.
- ✅【Servo motor bracket + coupling】Made of aluminium alloy, the servo motor bracket has strong locking force, high support strength, high resistance to change and vibration; the coupling is designed with an integrated structure with high torque and high rigidity.
| Item Weight | 13.86 pounds |
|---|---|
| Manufacturer | RATTMMOTOR |
| Package Dimensions | 35.43 x 9.45 x 4.72 inches |
